Bicycle Design

A frame is the central part of a bicycle, onto which wheels and other components are fitted. The modern and most common frame design is based on the triple triangle design, a central front triangle, and a paired rear triangle. Frames must be strong, stiff, and light, which is accomplished by combining different materials and tube shapes. The length of the tubes and the angles at which they are attached define a frame's geometry. The geometry design is an essential consideration in the intended use of the bike. The frame is designed to surpass all ASTM and ISO bicycle testing standards.


Single Speed Fixed Gear Bicycle




2D Drawing of Geometry

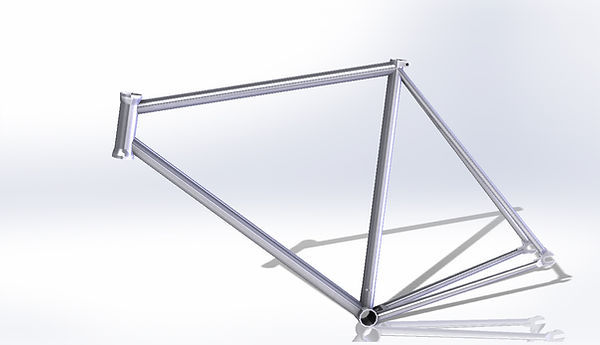

Solidworks Rendering




Components for the complete bikes are custom designed or chosen from a supplier based on the price point of the bicycle. Consideration is given during the design process to ensure that all parts are compatible.


Complete Production Bicycle



Twin Top Tube Bicycle




Solidworks Rendering




Complete Production Frame



Complete Bicycle

Complete Production Bicycle



BMX Bicycle




Solidworks Rendering




Complete Production Frame



Complete Bike

Complete Production Bicycle
